Product Overview

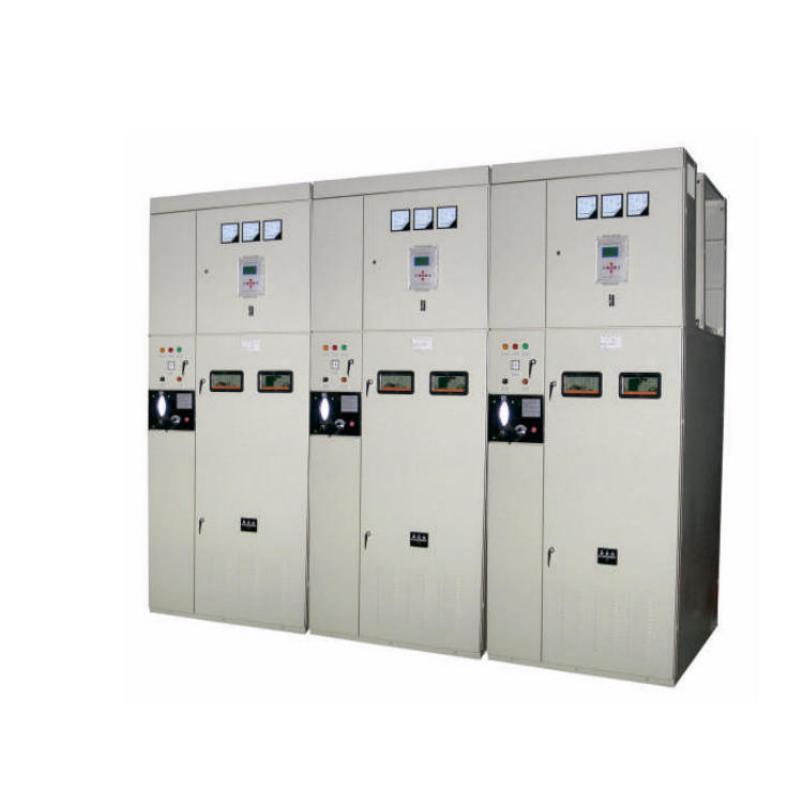

XGN2-12 is an indoor fixed box-type AC metal-enclosed high voltage switchgear suitable for 12kV (10kV), 50/60Hz three-phase AC power systems. This fixed-type medium voltage switch cabinet is designed for indoor power receiving, distribution, circuit protection and electrical control. It is one of the most mature and cost-effective switchgear solutions for industrial parks, mining enterprises, urban substations, chemical plants, hospitals, schools and factory power distribution rooms.
Different from withdrawable switchgear, the XGN2-12 adopts a fixed box-type structure with overall welded steel plate framework, featuring high mechanical strength, strong structural stability and excellent anti-vibration performance. The whole cabinet is dust-proof, anti-corrosion and highly adaptable to harsh indoor working environments. Equipped with reliable vacuum circuit breakers and perfect interlock protection devices, the equipment ensures safe, stable and long-term continuous operation.
Core Advantages
1. High Structural Stability：Integrated box-type welded structure provides high rigidity and strong shock resistance, not easy to deform after long-term operation, greatly improving overall equipment reliability.
2. Complete Safety Protection：Equipped with standard five anti-misoperation mechanical interlock devices to prevent wrong switching, wrong closing, live line grounding and other dangerous operations, ensuring personnel and equipment safety.
3. Cost-effective & Practical：Simple and mature structure, lower investment cost and maintenance cost compared with withdrawable switchgear, very suitable for conventional industrial and municipal power distribution projects.
4. Wide Application & High Adaptability：Stable performance in high temperature, humid and dusty indoor environments. Support various protection and measuring module configurations to meet different project requirements.
Main Technical Parameters
Rated Voltage: 12kV | Rated Frequency: 50/60Hz | Rated Current: 400A-3150A | Rated Short-circuit Breaking Current: 20kA/25kA/31.5kA | Protection Grade: IP3X/IP4X | Structure Type: Indoor Fixed Box Type
