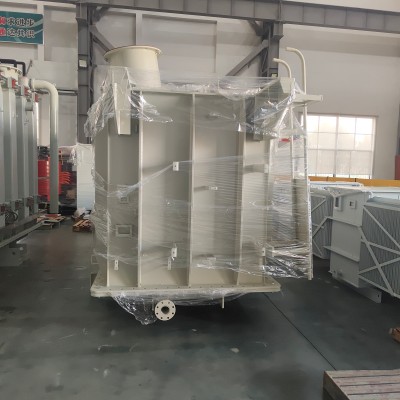

220kV Transformer
220kV Transformer 220kV Transformer

220kV Transformer

Product Attributes :

The 220kV Transformer engineered by Shandong Lukong Electric Equipment Co., Ltd. is a high-performance, extra-high voltage (EHV) power transformer designed for regional power grids, primary step-down substations, and heavy industrial facilities. Built to withstand extreme electrical and mechanical stresses, our 220kV power transformers deliver maximum operational efficiency, low power loss, and long-term grid stability.

Product Description

Premium 220kV Transformer Solutions for EHV Power Grids & Substation Infrastructure

In high-voltage transmission networks, reliability, continuous operation, and minimal transmission loss are essential for power grid stability. The 220kV Transformer engineered by Shandong Lukong Electric Equipment Co., Ltd. serves as a critical backbone for extra-high voltage (EHV) regional power grids, high-capacity step-down substations, and heavy industrial power systems. Built with over three decades of advanced electrical equipment manufacturing heritage, our 220kV Transformers combine exceptional thermal management, low partial discharge, and superior short-circuit withstand strength to support global utility infrastructure.

Technical Specifications & Parameter Overview

To ensure seamless integration into diverse utility networks and international electrical standards, every 220kV Transformer is designed and manufactured in strict compliance with top-tier engineering protocols:

Key Technical Parameter Specification Standard
Rated Primary Voltage 220kV (Customizable up to 252kV max system voltage)
Secondary & Tertiary Voltage 110kV, 35kV, 20kV, 10kV (Tailored to SLD requirements)
Cooling Method ONAN / ONAF / OFAF / OFWF
Voltage Regulation On-Load Tap Changer (OLTC) / Off-Circuit Tap Changer (OCTC)
Partial Discharge Level Ultra-low partial discharge (<10 pC at rated voltage)
Rated Frequency 50 Hz / 60 Hz
Compliance Standards IEC 60076, IEEE C57, ISO 9001, CE

Why Choose Our 220kV Transformer?

1. High-Efficiency Core Design for Low Operational Loss

Every 220kV Transformer produced in our ISO-certified facilities utilizes high-permeability, cold-rolled grain-oriented (CRGO) silicon steel sheets. Coupled with precision step-lap core stacking technology, our optimized magnetic circuit drastically reduces no-load loss, magnetizing currents, and noise levels. This high energy efficiency directly translates into significantly reduced lifecycle operating costs for utility operators.

2. Seamless Grid Regulation with Advanced OLTC Systems

Fluctuations on long-distance transmission lines can cause downstream grid instability. Our 220kV oil-immersed power transformers feature high-reliability On-Load Tap Changers (OLTC). This allows automated or remote voltage adjustments under full-load conditions without dropping power supply, guaranteeing a steady voltage profile across fluctuating demand periods.

3. High Electro-Dynamic & Short-Circuit Withstand Capability

Designed for heavy-duty industrial and utility environments, each 220kV Transformer incorporates transposed copper conductors, high-density insulating pressboards, and rigid mechanical clamping frames. This reinforced structural design delivers superior mechanical strength to withstand severe short-circuit electrodynamic forces and electrical transients.

4. Fully Sealed, Corrosion-Resistant Tank Enclosure

Built to endure challenging outdoor weather conditions—including high-altitude environments, humid coastal regions, and extreme temperature zones—our transformer oil tanks receive multi-layer anti-corrosion surface coatings. The hermetically sealed tank prevents moisture and oxygen ingress, protecting dielectric oil quality and extending maintenance intervals.

Global B2B Applications

Our 220kV Transformer series is deployed across high-demand infrastructure projects globally, serving key roles in:

  • Utility Distribution Substations: Acting as primary step-down power transformers in regional high-voltage transmission networks.

  • Renewable Energy Grid Integration: Connecting large-scale solar PV stations, wind power projects, and battery energy storage systems (BESS) directly to the 220kV grid.

  • Heavy Industrial & Mining Plants: Supplying continuous, high-volume electrical power to steel plants, aluminum smelters, chemical facilities, and mining operations.

Custom Engineering & Turnkey Support

At Shandong Lukong Electric Equipment Co., Ltd., we provide complete technical support tailored to your project's single-line diagrams (SLD):

  • Custom Vector Group & Impedance Matching: Configured to match existing power flow dynamics and grid requirements.

  • Smart Online Monitoring Options: Optional DGA (Dissolved Gas Analysis) sensors, oil level transmitters, and digital temperature indicators for real-time asset health tracking.

  • 100% Factory Acceptance Testing (FAT): Every 220kV Transformer undergoes strict routine, type, and special testing before export to guarantee zero-defect quality.

Contact Lukong Electric for Your Project Quote

Whether you are an EPC contractor, power utility engineer, or global industrial buyer, our technical team is ready to support your high-voltage equipment requirements. Contact us today for technical drawings, customized quotation proposals, and complete SLD evaluations.

  • Email: Ella@ecogreentrans.com

  • WhatsApp / Phone: +86 18954159606

  • Factory Location: Jinan City, Shandong Province, China
